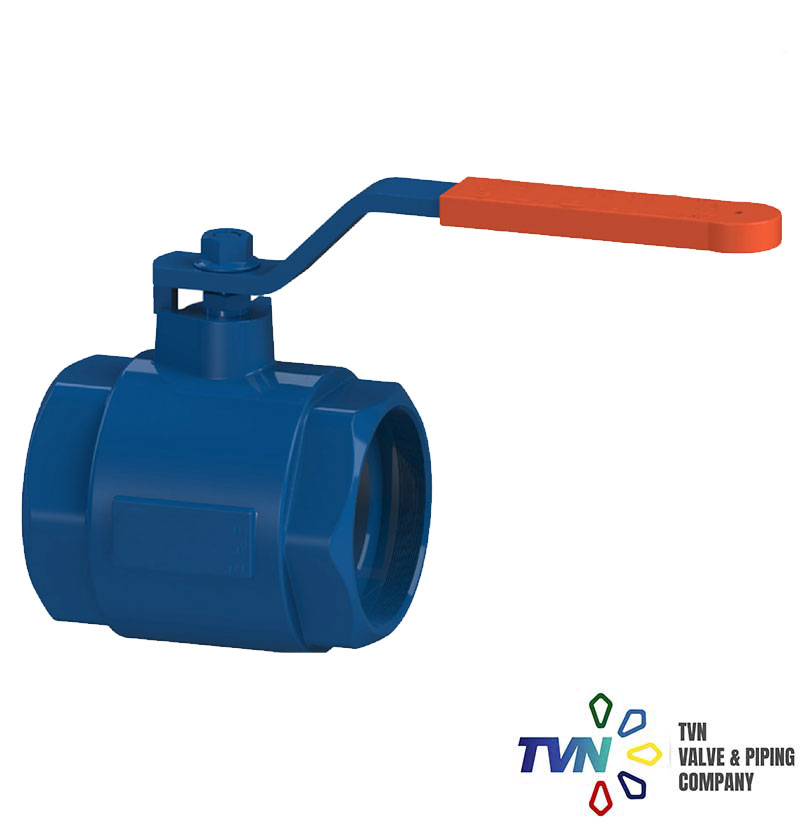

V754 CLAPET À BOULE TARAUDÉ
TVN V754 Clapets à Boule Taraudé sont des Robinets à Boisseau robustes et fiables pour un montage entre les réseaux PN16. Le matériau du corps en fonte ductile et la bille et les tiges en acier inoxydable améliorent la durabilité de la vanne. Les vannes offrent une large gamme d’applications grâce à l’étanchéité PTFE.
Application Range
- LPG
- Natural Gas
- Steam
- Super-heated water
- Industrial applications
Related Products
- V751 Flanged Ball Valve
- V851 Y-Strainer
- V209 Dual Plate Check Valve
- V200 Lift Check Valve
Product Features
- GGG40 ball valves can be used in almost all process industries like water distribution networks, food and pharmaceutical plants, water treatment, power plants as well as in machinery automation industries.
- The stainless steel ball & stem and sealing mechanism, ensures the valve for high temperature usage.
- It is advised to be used either at fully open or fully closed position.
- The ball valves open/close position can be easily observed from the handlever position easily.
- PTFE sealing provides long service life with zero leakage rates.
- The valves are designed for bidirectional usage.
- Through its full bore design, pressure loss is almost at zero point.
- Flange connections according to EN1092-2 / ISO 7005-2.
- Up to request, the body material can be GGG40 ductile iron.
- By adding an ISO top flange, the valve operation can be maintained by gearbox, pneumatical or electrical actuator.
- To provide a long service life, filtering of the pipeline by TVN V851 Y-Strainer is advised.
- Hydrostatic test pressure for seat: PN x 1.1 , for shell: PN x 1.5 according to EN 12266-1.
