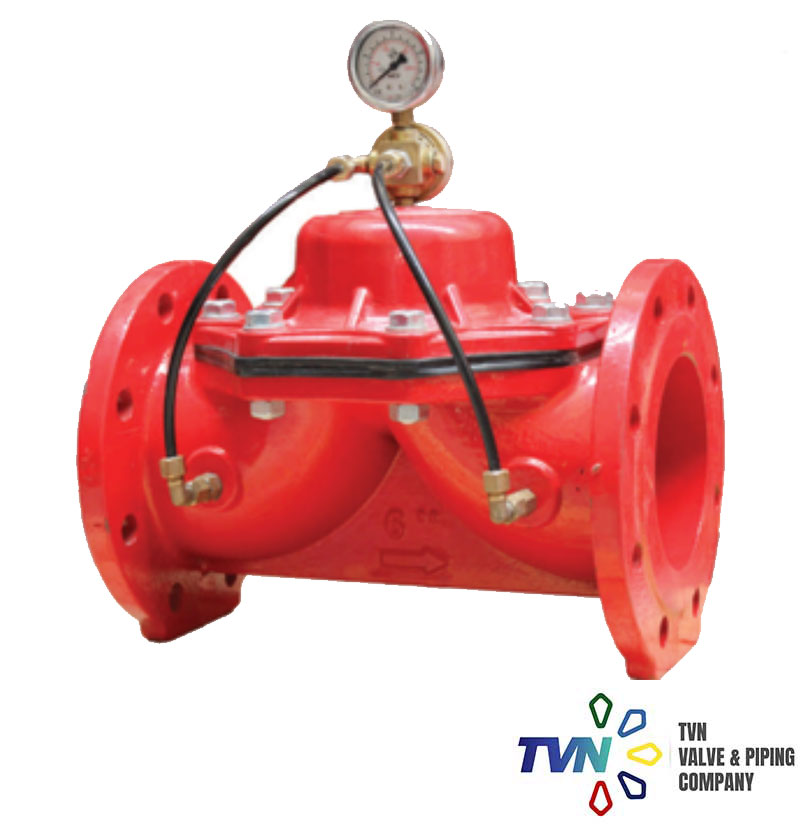

V505 VANNE DE RÉGULATION ET DÉCOMPRESSION
TVN V505 Vanne de Régulation et Décompression assure le fonctionnement du système en toute sécurité en drainant l’onde haute pression de manière sensible à la pression dans les systèmes impliquant une montée rapide de la pression. Lorsque la pression est supérieure à la pression de réglage pour une raison quelconque, une pression excessive est évacuée en ouvrant la vanne. il permet au système d’être durable et de fonctionner en toute sécurité.
Application Range
- Agricultural irrigation
- Household implementation
- Supply of water fire extinguishing
- Various applications of industrial systems.
- Food and chemical enterprises
Adjustment
With the pilot on the valve connected into inlet, inlet pressure is regulated. While clockwise rotation of the adjustment bolt increases the inlet pressure, counterclockwise rotation decreases it. With the pilot on the valve connected to outlet, outlet pressure is regulated. Clockwise rotation of the adjusting bolt increases the outlet pressure and counterclockwise rotation decreases it.
Pressure Relief Control Valve Product Features
- Protection of network against overpressure.
- No need for extra energy by running on pressure network.
- Easy and zero adjustment to demanded pressure.
- To be able to run without being affected by pressure and flow changes in the system.
- Does not require maintenance in operation for a long time due to its corrosion resistant components.
- Has a long working life in operation since coating has been made with phosphorization and over-dried epoxy powder paint.
- Performs perfect modulation in variable flows and even too low flow rates close to zero.
- Has a wide range of application with use of different pilot valves.
